Double Acting Cylinder

Cylinders with hydraulic force in both extend and retract strokes. Available in 9 mounting configurations for excavators, loaders, presses and industrial machinery.

• Bore Diameter 50 mm to 1000 mm
• Piston Rod Diameter 30 mm to 900 mm
• Stroke Length Up to 6000 mm, application dependent
• Working Pressure Up to 350 bar

9 products

Sort byFeaturedName: A to Z

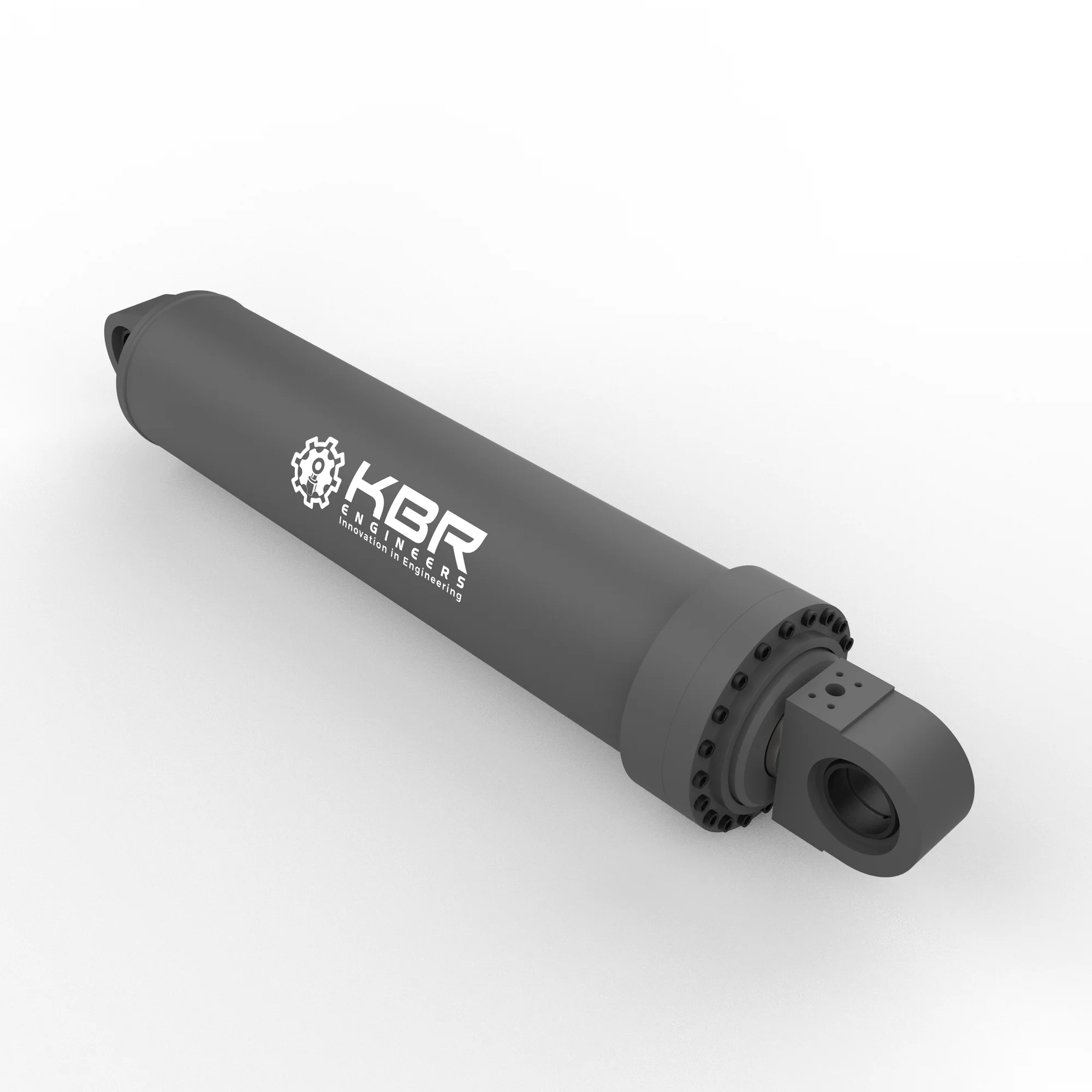

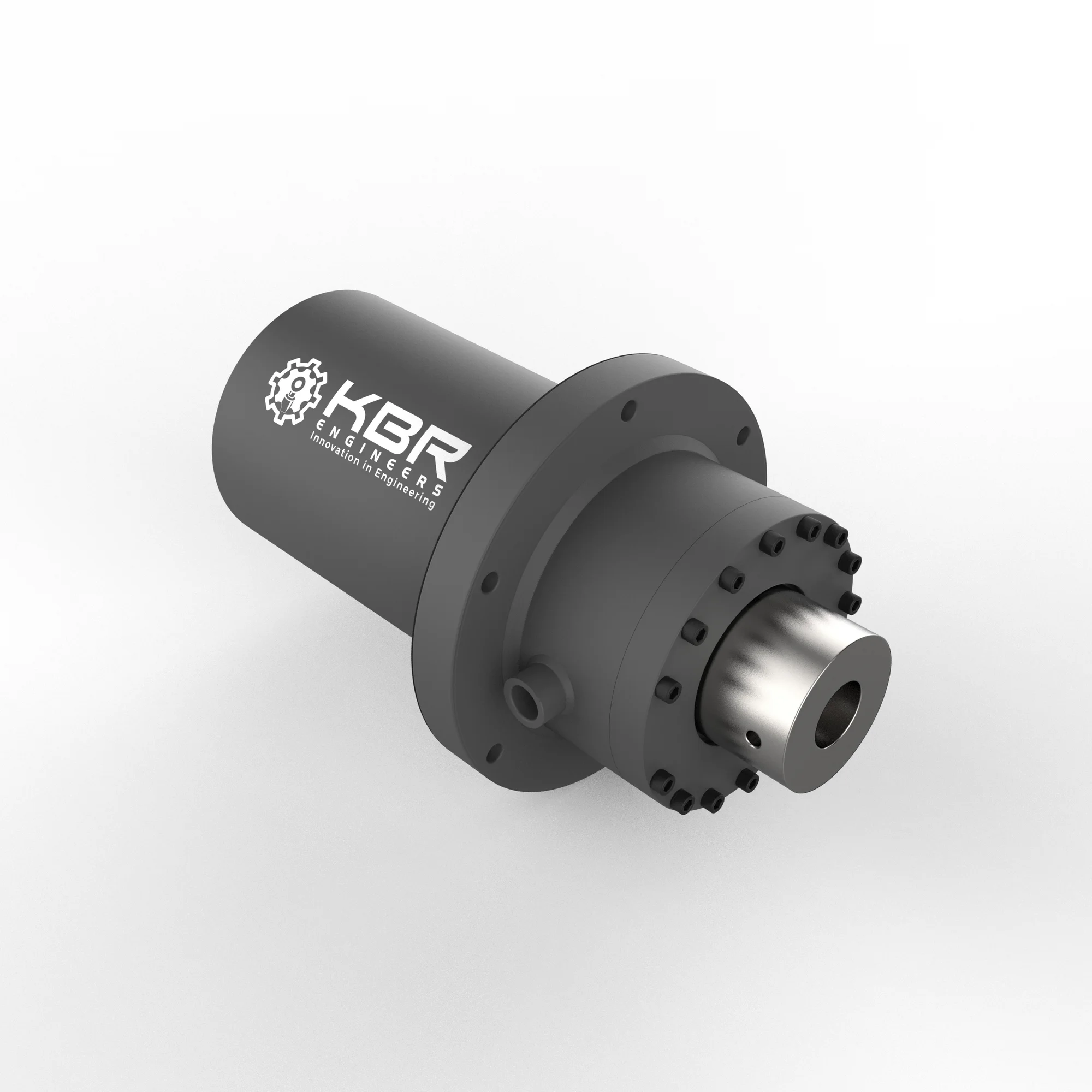

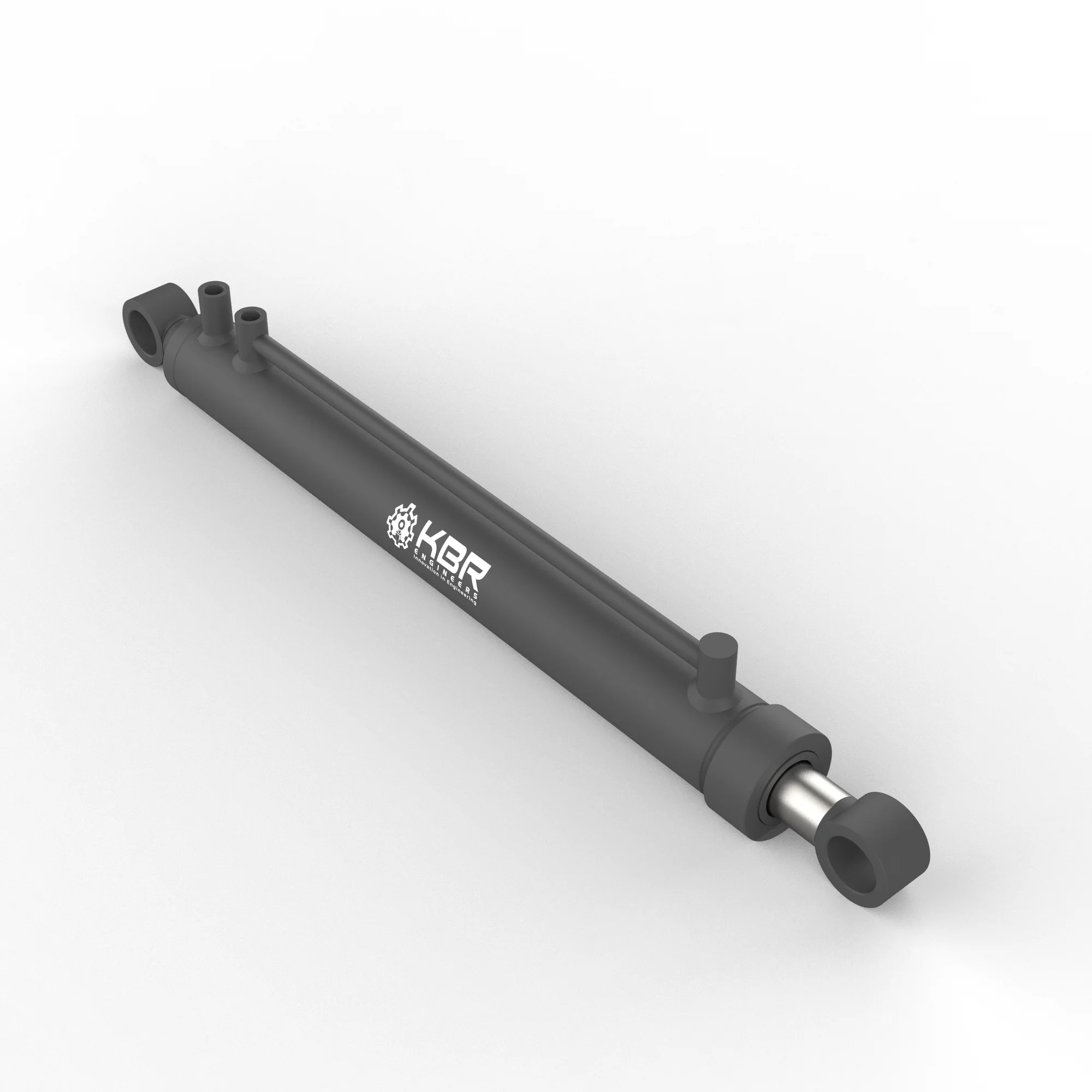

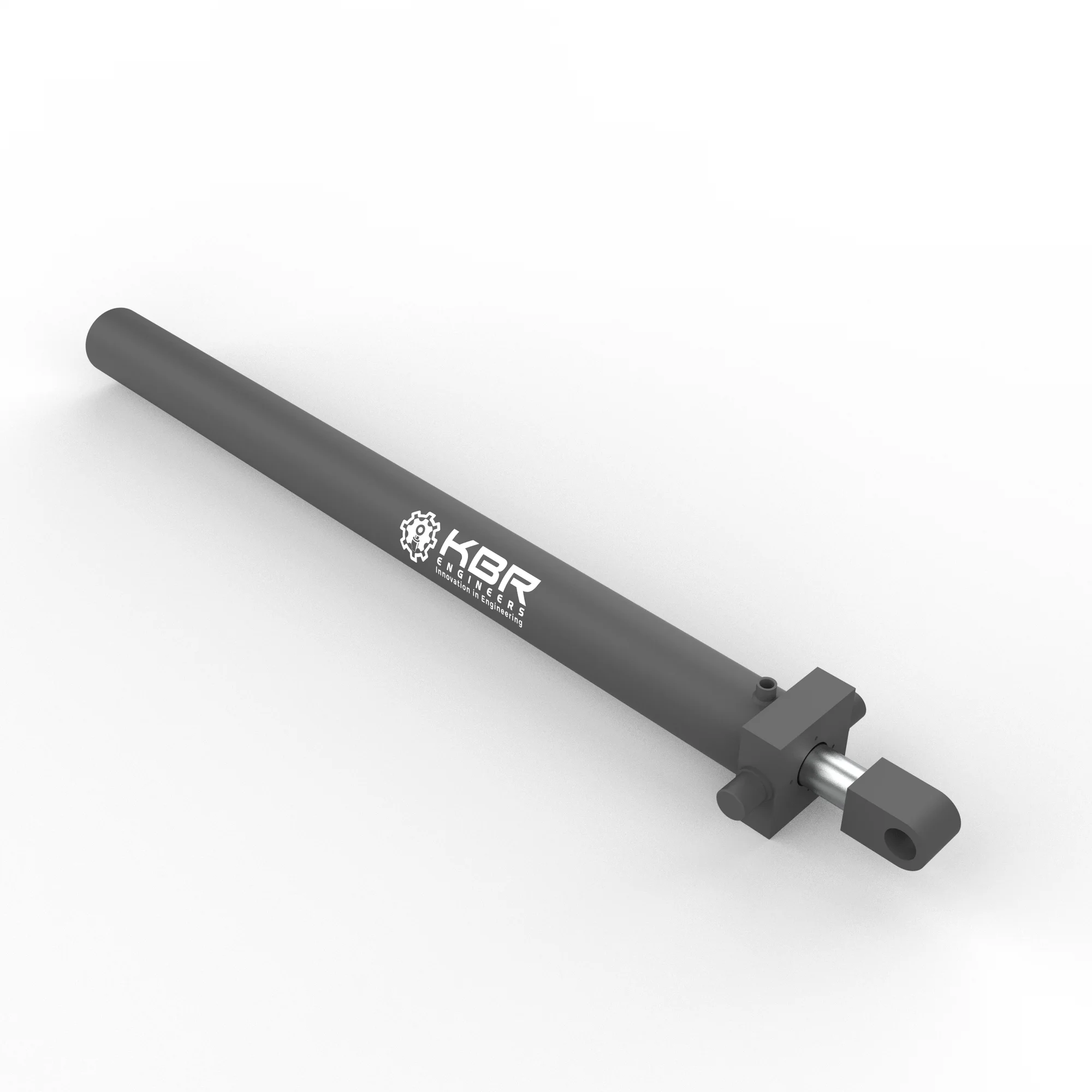

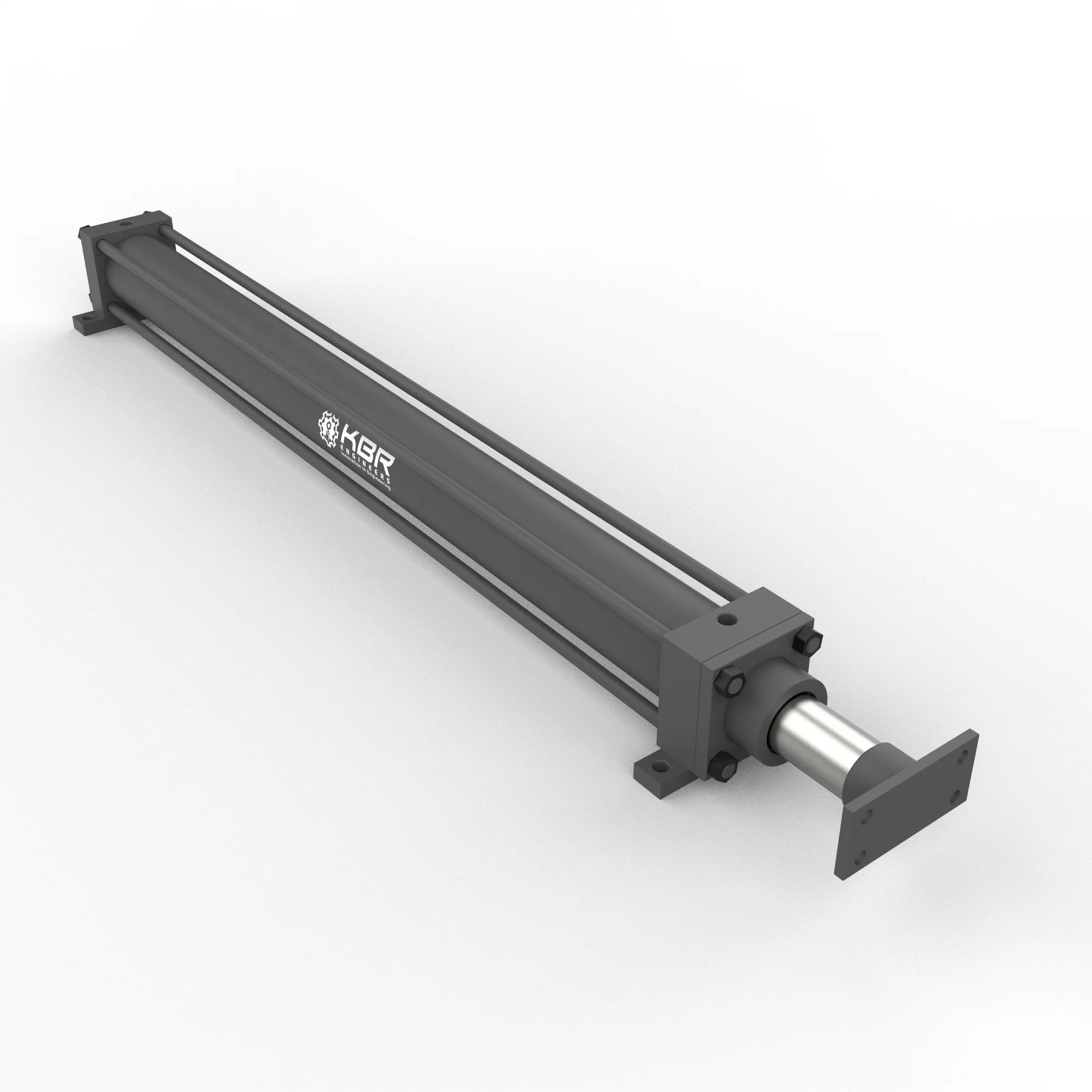

Clevis Mounting CylinderArticulates with the load through its arc, so side loading never reaches the seals. For pivoting linkages.Price on request→Tie Rod Cylinder — Double ActingTie rod construction strips down for service without cutting a weld. The workhorse for fixed machinery.Price on request→Trunnion Mounting CylinderBody-mounted trunnion pins give a stable pivot for angular motion. Common on booms and tilting frames.Price on request→Foot Flange Mounting CylinderBolts flat to a machine bed and spreads load across the flange. Rigid mounting with minimal vibration.Price on request→Front Flange Mounting CylinderFlange-bolted for centreline loading and precise alignment. The mounting of choice inside presses.Price on request→Pin Mounting CylinderPin eyes at one or both ends absorb misalignment and drop in fast. Standard on mobile equipment.Price on request→Spherical Bearing CylinderA spherical bearing at the clevis lets the cylinder self-align, cutting seal wear on off-axis loads.Price on request→Telescopic Cylinder — Double ActingHydraulic control on both strokes, so the stages retract on command rather than under gravity.Price on request→Y-Pin Mounting CylinderY-bracket and through-pin carry high loads in a compact footprint. For heavy-duty articulating duty.Price on request→
