Double Acting Cylinder

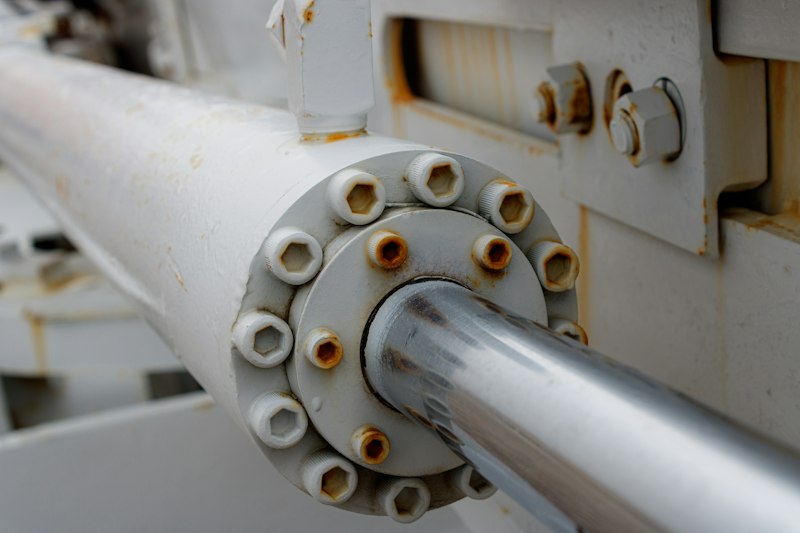

Foot Flange Mounting Cylinder
Bolts flat to a machine bed and spreads load across the flange. Rigid mounting with minimal vibration.
- Bore Diameter 50 mm to 1000 mm
- Piston Rod Diameter 30 mm to 900 mm
- Working Pressure Up to 350 bar
- Test Pressure 1.5 × working pressure
Specifications
| Bore Diameter | 50 mm to 1000 mm |
|---|---|
| Piston Rod Diameter | 30 mm to 900 mm |
| Stroke Length | Up to 6000 mm, application dependent |
| Working Pressure | Up to 350 bar |
| Test Pressure | 1.5 × working pressure |
| Mounting | Foot flange, both ends |
| Seal Material | Polyurethane / Nitrile, field replaceable |
| Cylinder Tube | Honed steel tube, H8 tolerance |
| Piston Rod | Hard chrome plated, f7 tolerance |
| Operating Temperature | -20 °C to +100 °C |
About this product
Foot Flange Mounted Hydraulic Cylinders feature integral mounting feet welded to the cylinder barrel, providing a rigid, stable attachment to flat machine surfaces. The foot flanges distribute the cylinder's reaction forces evenly across the mounting surface, minimizing vibration and ensuring precise alignment.
This mounting style is ideal for stationary industrial applications where the cylinder must remain perfectly aligned with the load axis — such as hydraulic presses, conveyor systems, clamping fixtures, and automated machinery. The foot flange design also simplifies installation: the cylinder is simply bolted down to a flat surface without the need for complex brackets or adapters.
KBR Engineers manufactures foot flange cylinders with precision-machined mounting surfaces, reinforced weld joints, and multiple bolt-hole patterns to suit standard and custom machine interfaces. The cylinders feature precision-honed barrels, chrome-plated piston rods, and premium sealing systems rated for continuous industrial operation.
Custom foot positions, bolt patterns, and flange dimensions are available to match your specific equipment requirements.
Manufacturing Range
KBR Engineers manufactures a wide range of custom-built hydraulic cylinders to meet diverse industrial requirements. We offer cylinder bore sizes from 50 mm to 1000 mm and piston rod diameters from 30 mm to 900 mm. All cylinders are designed and manufactured using high-quality materials, precision machining, and advanced sealing technology to ensure reliable performance, durability, and long service life.
Features
High Pressure
Rated up to 350 bar working pressure.
Precision Honed
H8 tolerance bore finish for even seal wear.
Pressure Tested
Every unit tested at 1.5× working pressure before dispatch.
Rigid Mounting
Bolts flat to the machine bed and spreads load across the flange.
Applications
- Construction Equipment
- Material Handling
- Steel & Cement Plants
- Agriculture
- Mining
- Hydraulic Presses
